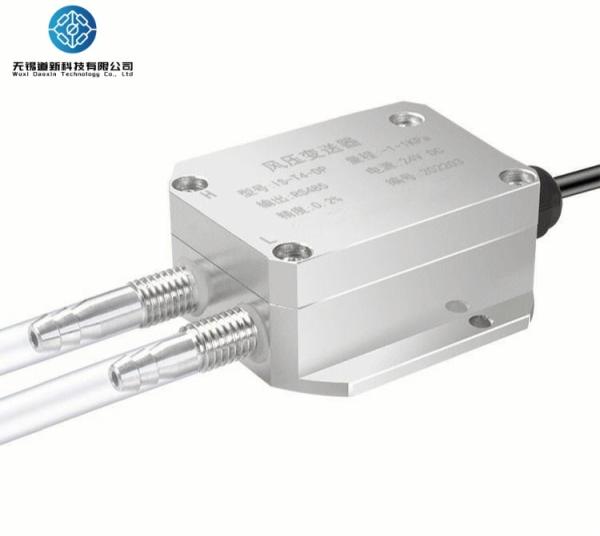

Professional Differential Pressure Transmitter for Gauge Pressure and Impulse Line Connection
Product Description:
The Pressure Instrument Series is available with multiple output signals, including 4-20mA, 0-10V, 0-5V, and RS485. This allows for flexibility in system integration and compatibility with a wide range of control systems.
The Measurement Range of the Pressure Instrument Series is -50Kpa To +50Kpa (Selectable), making it suitable for a variety of pressure measurement applications.
The Wetted Parts Material of the Pressure Instrument Series is Cast Aluminium, providing durability and resistance to harsh environments.
The Mounting Type of the Pressure Instrument Series is Impulse Line Connection, making it easy to install and integrate into existing systems.
Overall, the Pressure Instrument Series is an ideal choice for those seeking a high-precision wind pressure transmitter for Industrial Automation applications. Its threaded connection and rugged design make it ideal for use in harsh environments, while its multiple output signals ensure compatibility with a wide range of control systems.
Technical Parameters:
| Technical Parameter |
Description |
| Operating Temperature Range |
-40°C To 85°C |
| Measurement Range |
-50Kpa To +50Kpa (Selectable) |
| Output Signal |
4-20mA,0-10V,0-5VRS485 |
| Accuracy Class |
±0.25% FS |
| Supply Voltage |
12-36V DC |
| Static Pressure Range |
0-0.1 MPa |
| Wetted Parts Material |
Cast Aluminium |
| Mounting Type |
Impulse Line Connection |
| Pressure Type |
Gauge Pressure, Absolute Pressure,Differential Pressure |
This Pressure Instrument Series product is suitable for pipeline pressure monitoring, with impulse line connection and pressure measurement range of -50Kpa To +50Kpa (Selectable).
Applications:
The DX-131DP series offers different output signals like 4-20mA, 0-10V, 0-5V, and RS485, which makes it suitable for different applications. The measurement range varies from -50Kpa to +50Kpa, which is selectable according to the requirement of the industry. The instrument offers gauge pressure, absolute pressure, and differential pressure types, making it flexible to use in multiple scenarios.
The DX-131DP series is made of cast aluminum and has overload pressure protection, which safeguards the instrument from any damage due to unforeseen pressure spikes. The wetted parts material is made of cast aluminum, which makes it durable and long-lasting. The instrument's supply voltage ranges from 12-36V DC, which makes it compatible with various power sources.
The DX-131DP series is suitable for various product application occasions and scenarios. It can be used in the chemical industry for pressure measurement of different gases and liquids. In the food industry, the differential pressure sensor can be used for measuring the pressure during food processing. The instrument can be used in the pharmaceutical industry for measuring the pressure during the manufacturing process. In the oil and gas industry, the instrument can be used for measuring the pressure in the pipelines. The DX-131DP series can also be used in the automotive industry for measuring the pressure in the tires.
Support and Services:
Our Pressure Instrument Series products come with comprehensive technical support and services to ensure that you can get the most out of your investment. Our team of experts is available to provide assistance with installation, calibration, and troubleshooting. We also offer training services to help you and your team maximize the productivity and efficiency of your pressure instrument. Additionally, we provide repair and maintenance services to keep your pressure instrument running smoothly. Contact us to learn more about our product technical support and services.
