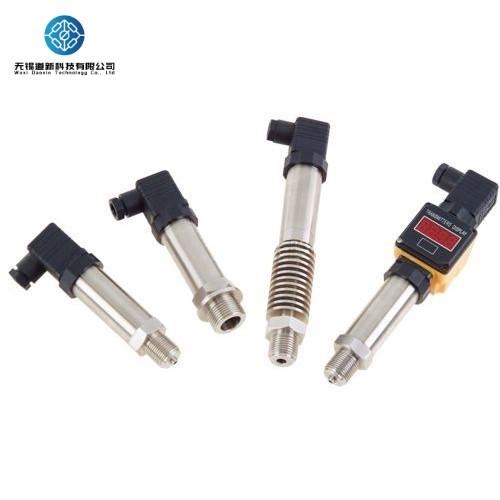

Pressure Sensor With Output Signal, Optional Mounting And Pressure Measurement Range
Product Description:
The Pressure Instrument Series is equipped with a variety of output signals, including 4-20mA, 0-5V, 0-10V, and RS485. This allows for easy integration into existing industrial automation systems and ensures compatibility with a wide range of devices.
This pressure sensor is designed for use with gauge pressure, which measures pressure relative to atmospheric pressure. This makes it ideal for applications where the pressure being measured is above or below atmospheric pressure.
With a temperature compensation range of -10°C to 60°C, the Pressure Instrument Series is able to maintain its high level of accuracy even in extreme temperatures. This makes it an ideal choice for applications where temperature fluctuations are common.
The Pressure Instrument Series requires a supply voltage of 12-36V DC, making it suitable for use with a wide range of power sources. It is also equipped with a standard process connection, making it easy to install and integrate into existing systems.
Overall, the Pressure Instrument Series is a reliable and accurate pressure sensor that is ideal for use in a wide range of industrial automation applications. Its IP65 rating, multiple output signals, and temperature compensation range make it a versatile and reliable choice for any application where pressure measurement is required.
Technical Parameters:
| Output Signal |
4-20mA, 0-5V, 0-10V, RS485 |
| Measurement Range |
0kPa to +60MPa (Selectable) |
| Ingress Protection (IP) Rating |
IP65 |
| Overload Pressure |
2 Times Full-scale Pressure |
| Temperature Compensation Range |
-10°C to 60°C |
| Long-term Stability |
≤±0.25% FS/year |
| Accuracy Class |
±0.25% FS, ±0.5% FS (Selectable) |
| Wetted Parts Material |
304, 316 or PTFE |
| Mounting Type |
Threaded, Clamp (Selectable) |
| Supply Voltage |
12-36V DC |
This Pressure Transmitter has an output signal of 4-20mA, 0-5V, 0-10V, or RS485, and an Ingress Protection rating of IP65. The measurement range is selectable from 0kPa to +60MPa. It has an overload pressure of 2 times full-scale pressure, and a temperature compensation range of -10°C to 60°C. The long-term stability is ≤±0.25% FS/year, and the accuracy class is selectable between ±0.25% FS and ±0.5% FS. The wetted parts material is available in 304, 316 or PTFE. The mounting type is selectable between threaded and clamp, and it operates on a supply voltage of 12-36V DC.
Applications:
The Pressure Instrument Series product is designed to measure pressure accurately and efficiently. The product is equipped with temperature compensation range of -10°C to 60°C, ensuring accurate measurements in varying temperatures. The wetted parts material is made of 304, 316 or PTFE, making it suitable for use in various scenarios. The accuracy class of the product is selectable between ±0.25% FS and ±0.5% FS, enabling users to choose the level of accuracy required for their specific application.
The Pressure Instrument Series product is available in two mounting types, threaded and clamp, making it easy to install in different environments. The product also has a selectable measurement range between 0kPa to +60MPa, ensuring the product is suitable for various pressure measurement requirements.
Additionally, the product has long-term stability, ensuring accurate measurements over extended periods of time. The Flange Connection attribute makes it easy to connect to different vessels or piping systems, making it a versatile product for use in different industries.
Support and Services:
The Pressure Instrument Series product provides technical support and services to ensure optimal performance and accurate readings. Our team of experts are available to assist with:
- Installation and setup
- Calibration and testing
- Maintenance and repair
- Product training and education
Our goal is to provide timely and comprehensive support to our customers, ensuring their satisfaction with our product. If you have any questions or concerns, please do not hesitate to reach out to us.
